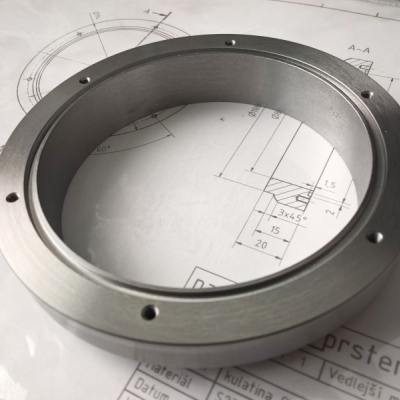

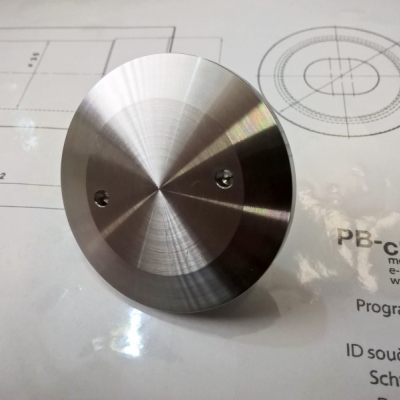

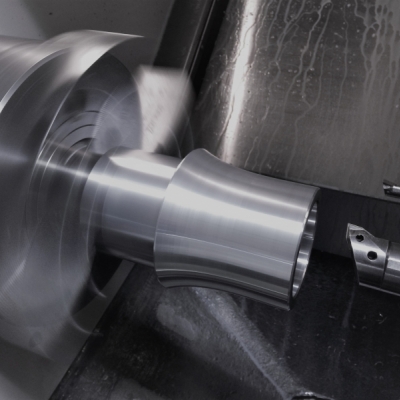

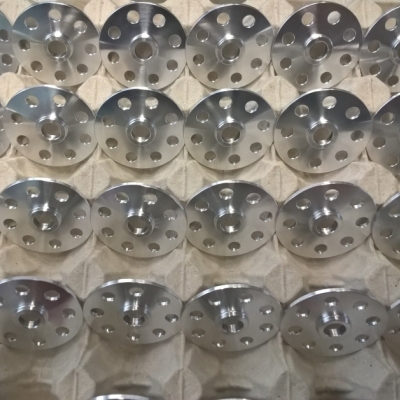

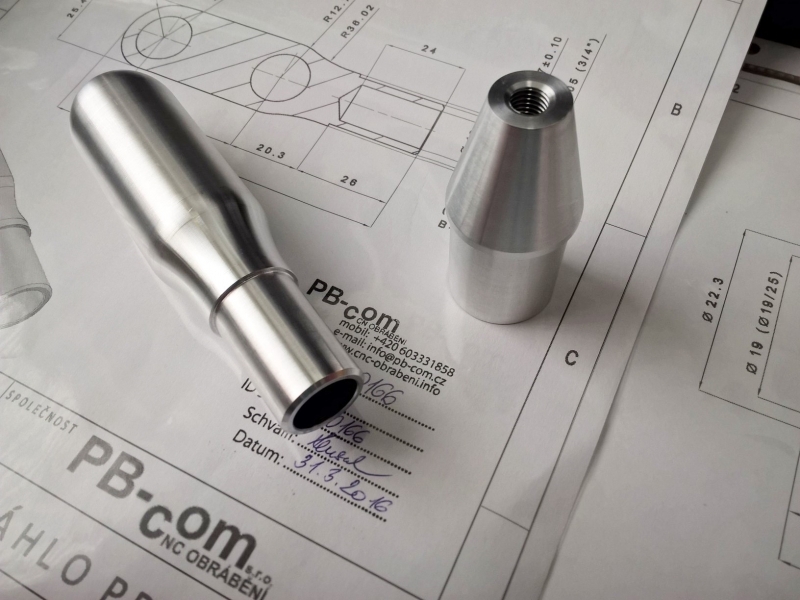

CNC TURNING

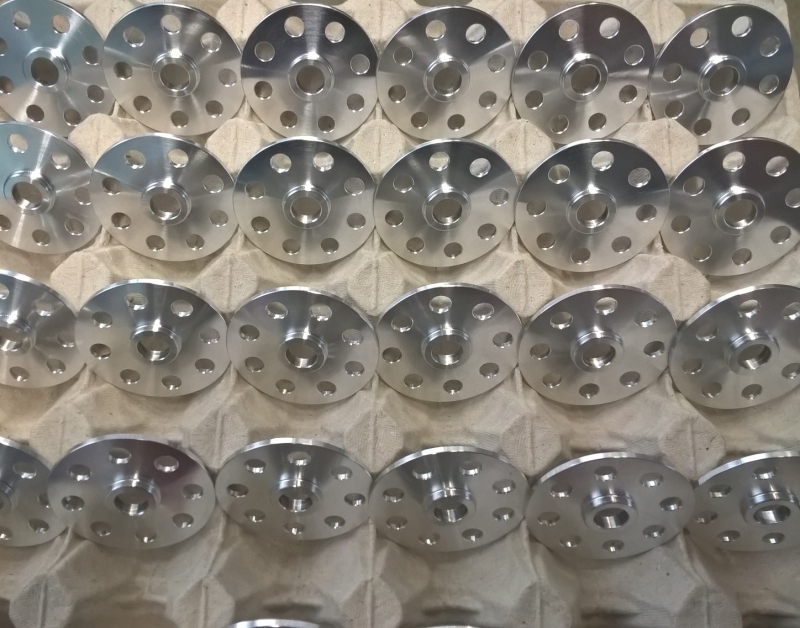

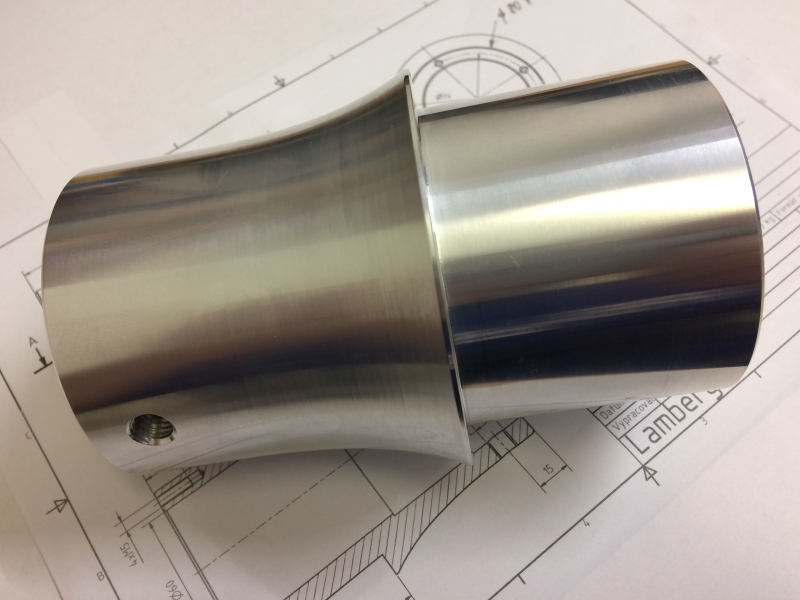

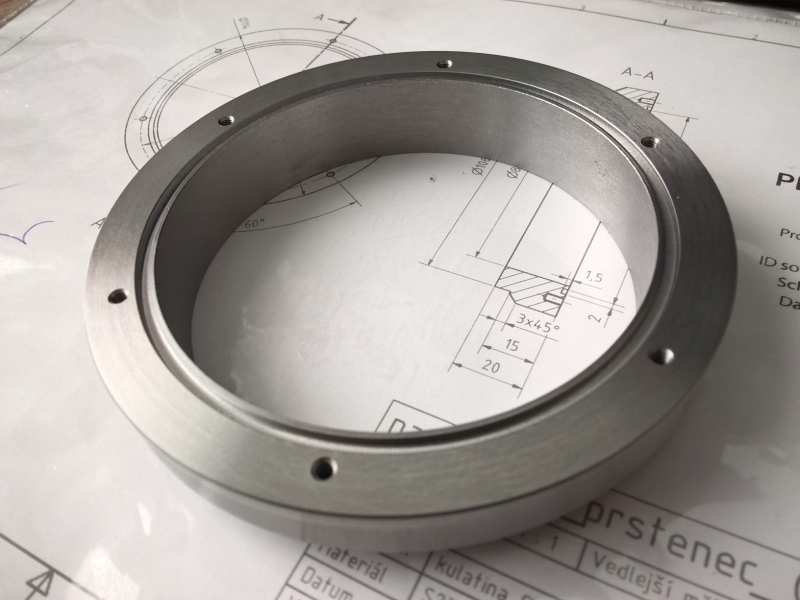

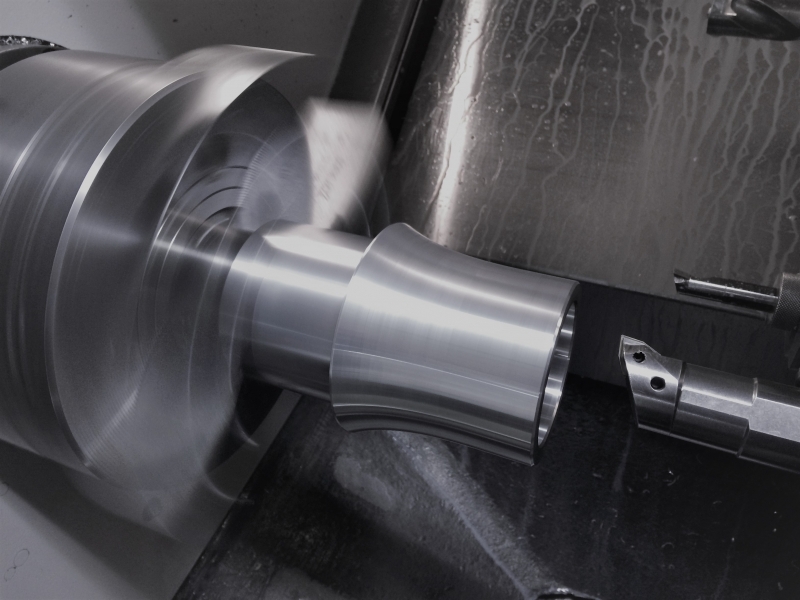

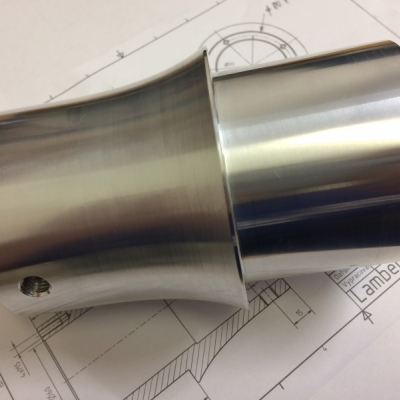

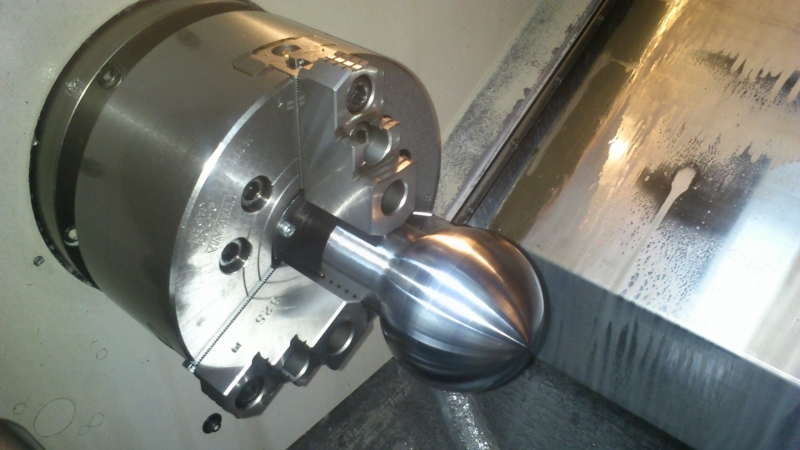

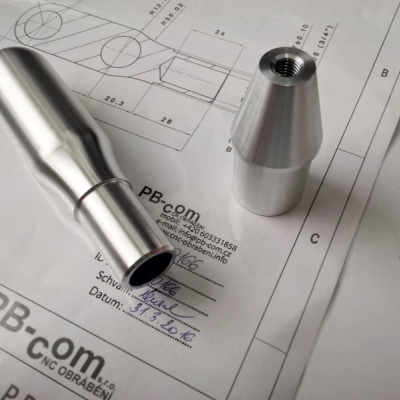

Our CNC turning division offers precise production of turned and turned-milled parts, from small diameters up to 250 mm. Larger machined diameters are provided by agreement.

2-axis turning:
  • up to 220 mm in diameter (chuck)
  • up to 65 mm in diameter (collet)
  • spindle passage dia. 65 mm
  • tailstock
  • clamping length 300 mm
  • bar feeder
  • FANUC control system
3-axis turning:
  • up to 220 mm in diameter (chuck)
  • up to 65 mm in diameter (collet)
  • spindle passage dia. 65 mm
  • C-axis indexation = 0.001°
  • tailstock
  • clamping length 300 mm
  • bar feeder
  • FANUC control system
5-axis turning:
  • up to 220 mm in diameter (chuck)
  • up to 65 mm in diameter (collet)
  • spindle passage dia. 65 mm
  • C-axis indexation = 0.001° (2×)
  • counterspindle
  • clamping length 300 mm
  • bar feeder
  • FANUC control system
Size of production orders:
  • individual production (1–50 pcs)
  • small-series production (51–1000 pcs)
  • medium-series production (1001–10,000 pcs)
  • large-series production (above 10,001 pcs)



Other related links:  CNC milling  - CAD/CAM - Operating equipment.
